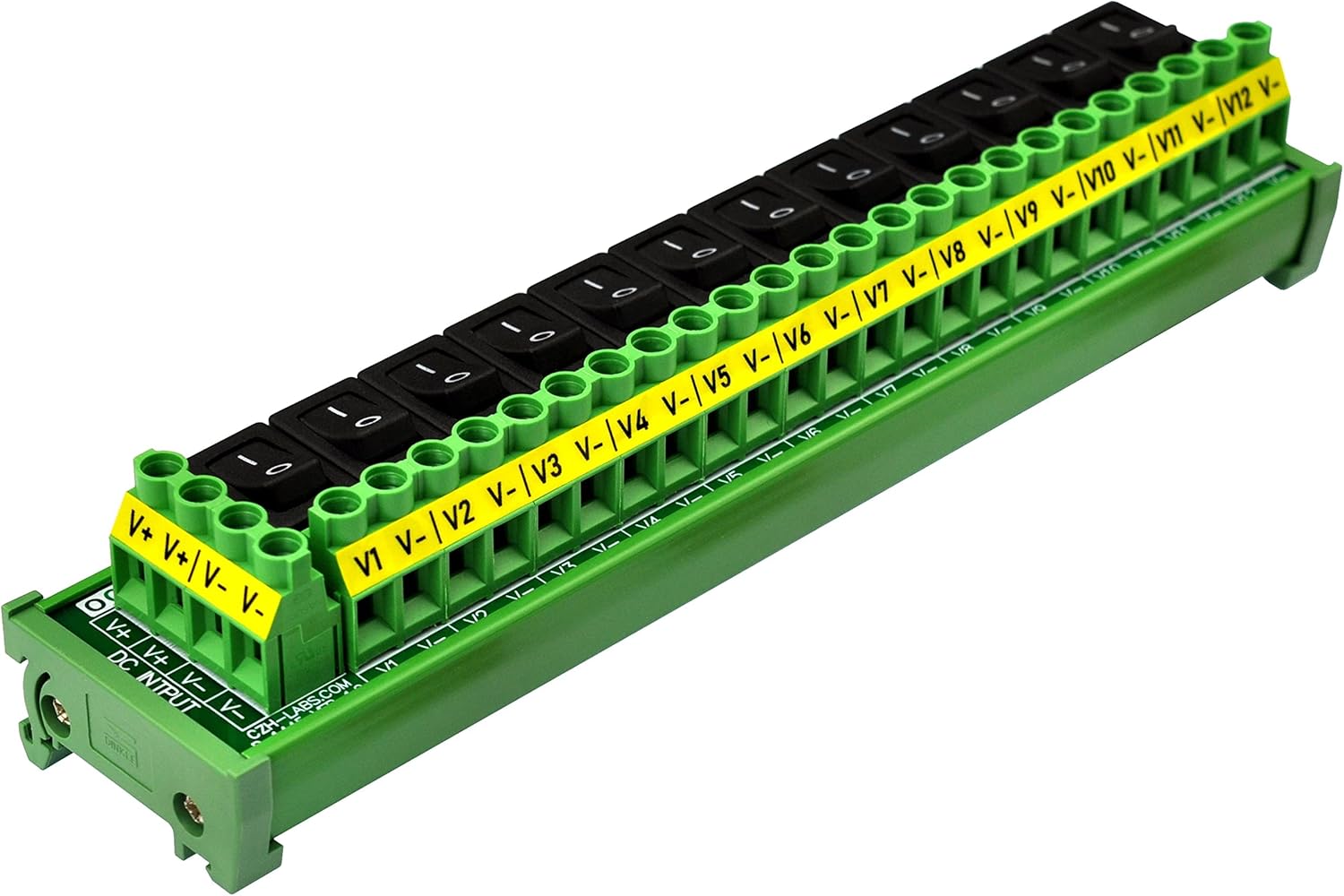

DIN Rail Mount 12 Channel Rocker Switch DC Power Distribution Strip Module
$41.61
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 12 Channels output, each channel maximum output current 10 Amps.
- Input terminals pitch 7.62mm/0.3″, maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3″, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
- High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
